Tshiab 125CC Gas ATV 8inch Plaub Wheelers Farm Quad Bikes
Tshiab 125CC Gas ATV 8inch Plaub Wheelers Farm Quad Bikes
Product Description
ATV009 PLUS yog lub tsheb ua haujlwm txhua qhov chaw nruab nrog 125CC 4-stroke cua-txias cav, xa tawm lub zog ruaj khov. Nws los nrog lub tshuab hluav taws xob pib kom ceev thiab ua haujlwm tau zoo. Kev siv cov saw hlau sib txuas tsim, nws ua kom muaj kev hloov pauv hluav taws xob ncaj qha, thiab ua ke nrog cov iav tsis siv neeg nrog rov qab, ua haujlwm yooj yim thiab haum rau ntau yam kev caij tsheb.
Lub tsheb tau nruab nrog hydraulic shock absorbers nyob rau hauv pem hauv ntej thiab nram qab, uas zoo txo kev vibrations thiab txhim khu kev nplij siab nyob rau hauv txoj kev ntxhib. Kev sib xyaw ua ke ntawm pem hauv ntej nruas nres thiab rear hydraulic disc nres kom ntseeg tau tias kev ua haujlwm ruaj khov. Nrog 19 × 7-8 lub log pem hauv ntej thiab 18 × 9.5-8 lub log tsheb, nws boasts muaj zog passability, thiab 160 hli av clearance yog haum rau off-txoj kev xwm txheej.
Nws muaj tag nrho qhov ntev ntawm 1600 × 1000 × 1030mm, lub wheelbase ntawm 1000mm, thiab lub rooj zaum siab ntawm 750mm, ntsuas kev nplij siab thiab maneuverability. Nrog rau qhov hnyav ntawm 105KG thiab lub peev xwm thauj khoom siab tshaj plaws ntawm 85KG, nws ua tau raws li kev siv txhua hnub. Lub 4.5L roj tank ua kom muaj ntau yam txhua hnub, thiab lub teeb ci LED txhim kho kev nyab xeeb thaum hmo ntuj. Nws muab cov xim yas dawb thiab dub, nrog cov xim nplaum muaj xim liab, ntsuab, xiav, txiv kab ntxwv thiab liab, sib txuas ua haujlwm thiab zoo li.
Paub meej

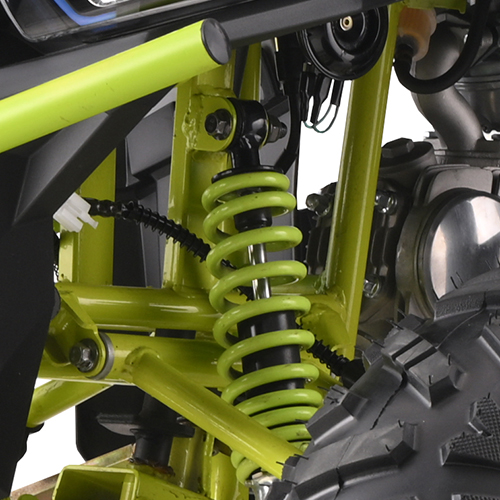

Hydraulic shocks rau ATV muab lub zog nqus los txhawb kev ruaj ntseg thiab kev nplij siab ntawm txoj kev nyuaj.

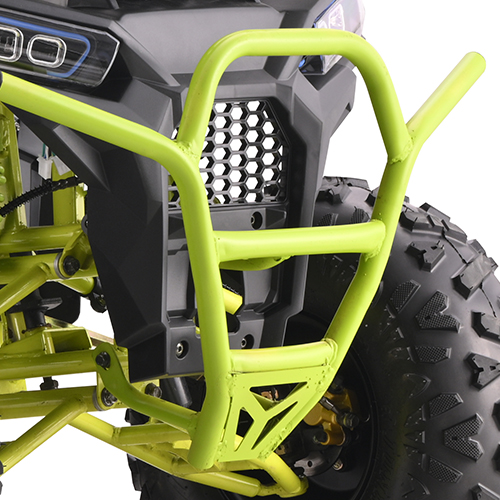

Lub pem hauv ntej bumper ruaj khov, ua los ntawm cov khoom siv siab nruj, tiv thaiv kev cuam tshuam / khawb los tiv thaiv pem hauv ntej kom nyab xeeb hauv kev caij tsheb.

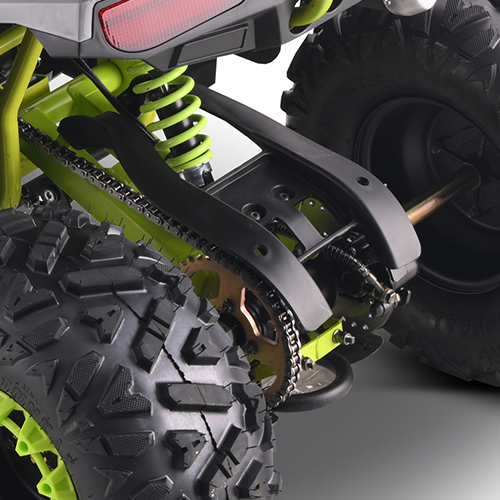

ATV009 PLUS siv cov saw tsav rau ncaj qha, muaj zog hloov pauv nrog lub zog qis, ruaj khov thiab yooj yim los tswj kev tawm mus.

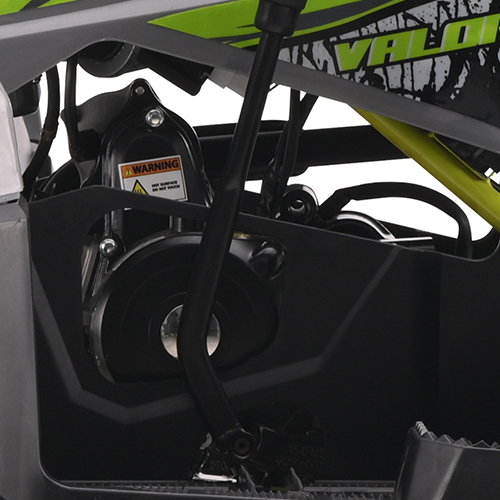

Lub cav txhawb nqa kev tswj lub iav, nrog kev hloov ko taw muaj nyob rau hauv kev xaiv kom haum rau ntau hom kev nyiam caij tsheb.
| Qauv | ATV009 PLUS |
| Cav | 125CC 4 stroke cua txias |
| PIB SYSTEM | E-START |
| KHOOM | AUTOMATIC nrog rov qab |
| MAX SPEED | 60 KM / H |
| Roj teeb | 12v5a ua |
| LUB HOM PHIAJ | LED |
| TRANSMISION | CHAIN |
| Pem hauv ntej SHOCK | HYDRAULIC SHOCK ABSORBER |
| PHEM TSHAJ | HYDRAULIC SHOCK ABSORBER |
| Pem hauv ntej BRAKE | DRUM BRAKE |
| REAR BRAKE | HYDRAULIC DISC BRAKE |
| Pem hauv ntej & REAR WHEEL | 19 × 7-8 / 18 × 9.5-8 |
| TANK CAPACITY | 4,5l ua |
| WHEELBASE | 1000MM |
| LUB SIJ HAWM | 7 50mm |
| PIB CLEARANCE | 160 MM |
| NET WEIGHT | 105 KG |
| TAG NRHO NYIAJ | 115 KG |
| MAX LOADING | 8 5 KG |
| TSEEM CEEB | 1600 x 1000 x 1030 mm |
| PACKAGE SIJE | 1450 x 850 x 630 mm |
| THAJ LOADING | 30PCS / 20FT, 88PCS / 40HQ |
| Plastic Xim | DAWB DUA |
| STICKER COLOR | RED GREEN BLUE ORANGE PINK |
